Unit: Adjusting cabinets on-site

Section: Making adjustments

MSFKB3004: Conduct on-site adjustments to cabinets

Competencies covered

MSFKB3004: Conduct on-site adjustments to cabinets

Assignment

Your trainer may ask you to complete this assignment as one of the assessment requirements for this unit. For more information about the assessment process and advice on what to do if you need help with your reading and writing, click on the link below.

Assessment requirements


Assignment for Section 1: Making adjustments

Question 1

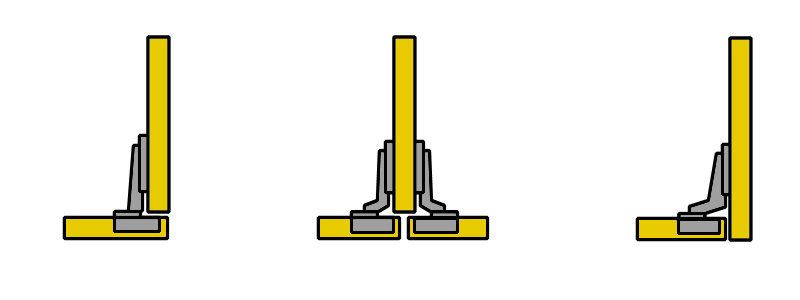

Three different types of concealed hinge are shown below. Their names refer to the position of the door in relation to the side of the cabinet. What is the name of each type of hinge?

Question 2

Choose a concealed hinge that you commonly use in your cabinets and answer the following questions:

(a)   Who is the manufacturer and what is the full name of the hinge?

(b)   What is the standard gap that you try to achieve between doors?

(c)   How do you fix a bind in the door with this type of hinge?


Question 3

Choose a drawer system that you commonly use and answer the following questions:

(a)   How is the drawer front fixed to the drawer? If it uses a patented system, name the manufacturer and the product. If it is a standard workshop-built drawer, describe the process for fixing the front.

(b)   If a drawer front was high on one side in the finished cabinet, how would you drop that side so the front was level?


Question 4

The cabinet below has been installed with a level top and base, but it has been pushed out of square because the wall is not plumb.

When the doors are hung, there will be a serious problem. Draw the two doors in position on the diagram to show what the problem will be.

Question 5

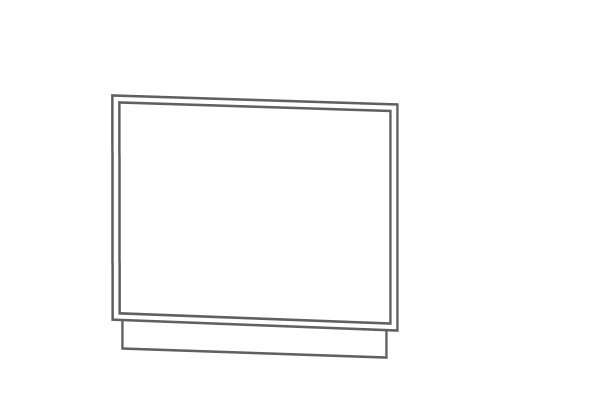

The cabinet below has been installed with plumb sides, but it has been pushed out of square because the floor isn't level.

When the doors are hung, there will be a serious problem. Draw the two doors in position on the diagram to show what the problem will be.




Doc (140 KB) Making adjustments template

Click on the link above to go to the Word document you will need to complete. You should fill in your answers on-screen and then either:

  • print out a hard copy to send to your trainer by post

  • save the file electronically to submit to your trainer as an email attachment.



  Go to  Just for fun
